Micha
@Micha7+

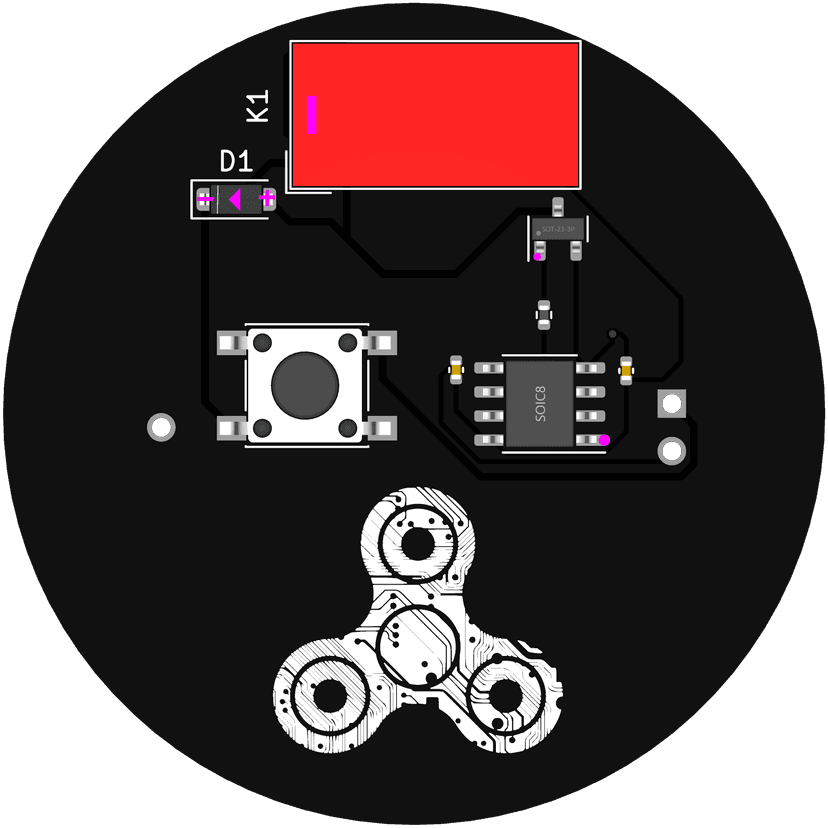

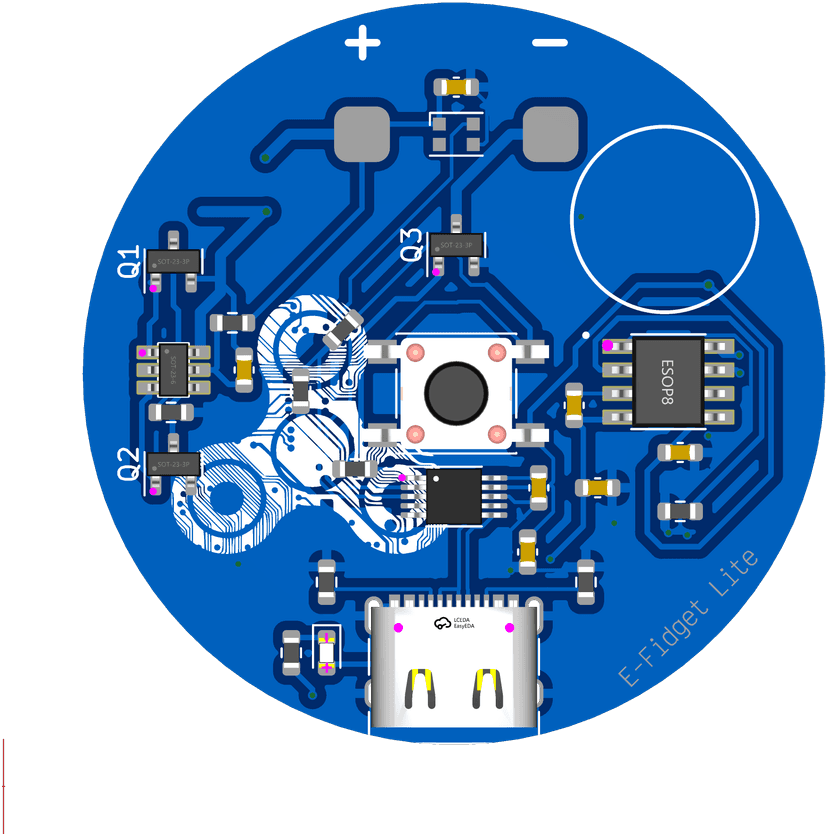

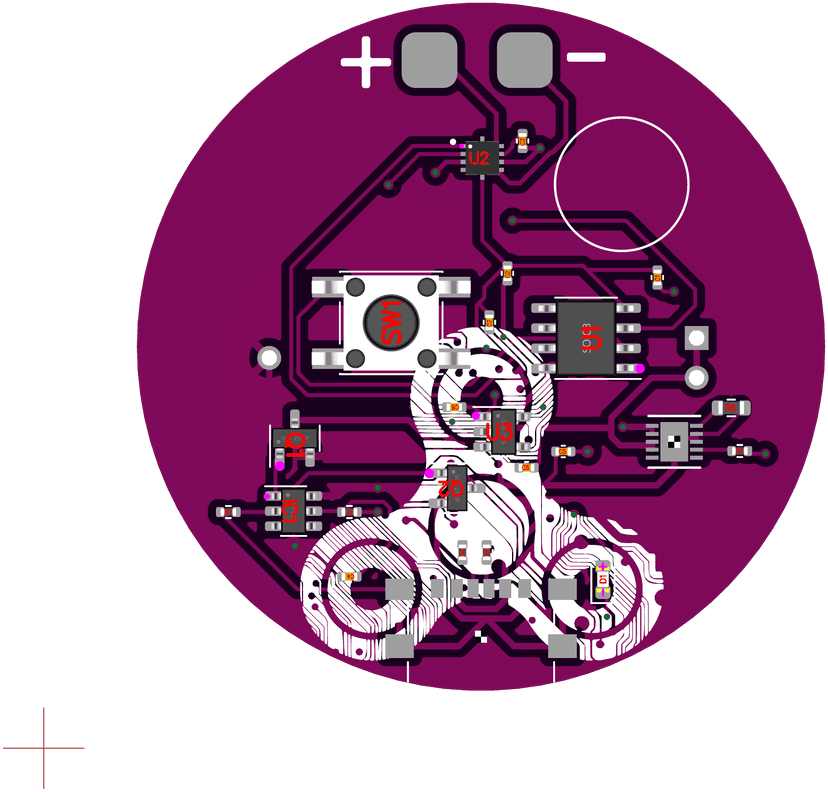

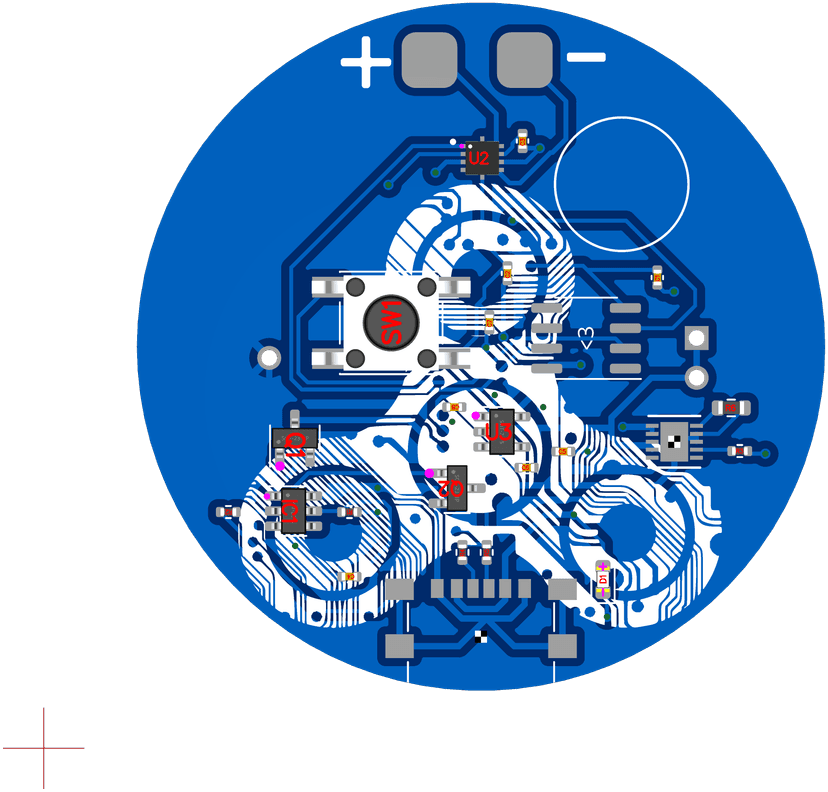

It's been a while since I've done a full update on the E-Fidget, so here it is: Version 4 was funded by #onboard, and it didn't quite work out (assorted issues with wiring and the relay-as-haptic-feedback idea) Version 5 was sponsored by PCBWay, and worked quite well with a linear resonant actuator for haptic feedback. Version 6 was a minor revision, with just a few tweaks. Version 7 added rechargeable battery support, but used an obscure, hard-to-source battery and was too expensive to sell easily. Version 8 was a complete redesign, following the same shape, size, and look of V7, but using a different microcontroller and a more common battery. It's still on the way! Now, everyone's favorite part: Pictures! Black is V4, Purple is V6, Blue with the big logo is V7, and other blue is V8!
https://scrapbook-into-the-redwoods.s3.amazonaws.com/6b33eaf8-9627-484b-a8e2-f865ca57fd3c-image.pnghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/a7365e3f-00ce-4455-8ce5-5825510bcc4e-image.pnghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/628381d1-62d3-4eee-bb88-1d1642e45ce4-image.pnghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/dc567765-91bf-4fc6-9704-209fc35adf2f-image.png
