Wed, Jul 3

Pretty much finished my Dream CS Bot. Inspired by JTH 🙂 . drive.google.com/file/d/1xWpLL1UDiE0FSPScPbRiGbfpiml40qZx/view?usp=sharing

https://scrapbook-into-the-redwoods.s3.amazonaws.com/4e64eccb-deac-4203-866b-19a3348fb20e-dream_cs_robot_2024-jul-02_02-58-45am-000_customizedview29756820432_png_alpha__1_.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/3f616f53-70e0-4f26-b708-e4f924b4be1c-dream_cs_robot_2024-jun-25_12-20-47am-000_customizedview13473000367_png_alpha__1_.png

Wed, Jul 3

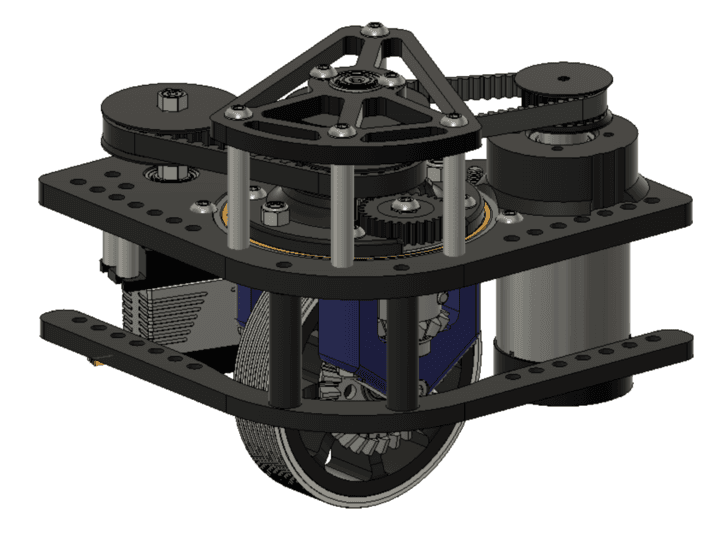

Finished my Swerve v3! drive.google.com/file/d/1bwTNGPWOolwi1_TnaLYXZwt3IdOvh8r1/view?usp=sharing

https://scrapbook-into-the-redwoods.s3.amazonaws.com/3ceda040-3f58-43b2-8189-6ad5e0457904-image.png

Sun, Jun 23

Finished my Swerve v2! a360.co/3XEkfaX

https://scrapbook-into-the-redwoods.s3.amazonaws.com/afaec8af-7769-444c-8246-62cc8633d400-screenshot_2024-06-22_at_8.19.37___pm.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/85f0285f-21c7-43f1-bf3c-b3b57492cbad-screenshot_2024-06-22_at_8.19.22___pm.png

Sat, Jun 22

Roughly halfway done with making a cool CenterStage robot (inspired by JTH). Day 3 of Arcade. (drive.google.com/file/d/1UNWMQTvn3zC-ZsYB7bwzuiAY4yv7IZtQ/view?usp=sharing)

https://scrapbook-into-the-redwoods.s3.amazonaws.com/0c828a72-c469-482c-b533-4e1a17a63d4d-dream_cs_robot_2024-jun-22_12-09-22am-000_customizedview5574859416_png_alpha.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/06d05506-63ad-442b-8c14-70e265bd9bed-dream_cs_robot_2024-jun-22_12-07-43am-000_customizedview26601538103_png_alpha.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/ea7826ea-8aee-4703-8a22-549d2cf5f0a0-dream_cs_robot_2024-jun-22_12-10-52am-000_customizedview61227588801_png_alpha.png

Thu, Jun 20

Day 3 of Arcade. Made this yesterday and assembled it today. It is a wall mounted Phone Holder and it is big enough for the iPhone Pro Maxes. It can tilt at the wall mounted area and then again where it attaches to the phone holder it self. I pocketed the phone holder using a Vonoroi Script from Fusion 360 and I think it turned out great. It removes some weight (and less filament needed) but still keeps enough structural integrity. github.com/vintheruler1/Arcade-HackClub/blob/main/Things%20for%20Me/Desk/Phone%20Wall%20Mount%20Holder.step

https://scrapbook-into-the-redwoods.s3.amazonaws.com/42d8b338-4239-42ae-bc17-bfc268fc7d42-img_6707.jpg

https://imgutil.s3.us-east-2.amazonaws.com/c74d2ca9c94200c2060837da9f61f37917e959c462ef2d12bce210a5b5d0d2c4/fbbda486-bca9-485f-8541-94b861fe9953.png

Thu, Jun 20

Just finished CADding my Wall Mounted Phone holder. It has a Vonoroi pocketed holder so I guess less weight but mainly for looks. Going to print it and assemble it tomorrow 🙂 (link to download: github.com/vintheruler1/Arcade-HackClub/blob/main/Things%20for%20Me/Desk/Phone%20Wall%20Mount%20Holder.step)

https://scrapbook-into-the-redwoods.s3.amazonaws.com/5078292b-3bd9-4b7d-80af-a79b44cca184-phoneholdervonri.png

Wed, Jun 19

Still on Day 2 of Arcade, got a nice active intake done! It has joints on fusion so now I can rotate it and see it move 🔥 . You can check it out at a360.co/3xf6y7L (should be downloadable too :))

https://scrapbook-into-the-redwoods.s3.amazonaws.com/79533b7b-0fb7-4546-938f-e6017b8932ca-conveyor_conveyor_2024-jun-19_04-20-56pm-000_customizedview47512624305_png_alpha.png

Wed, Jun 19

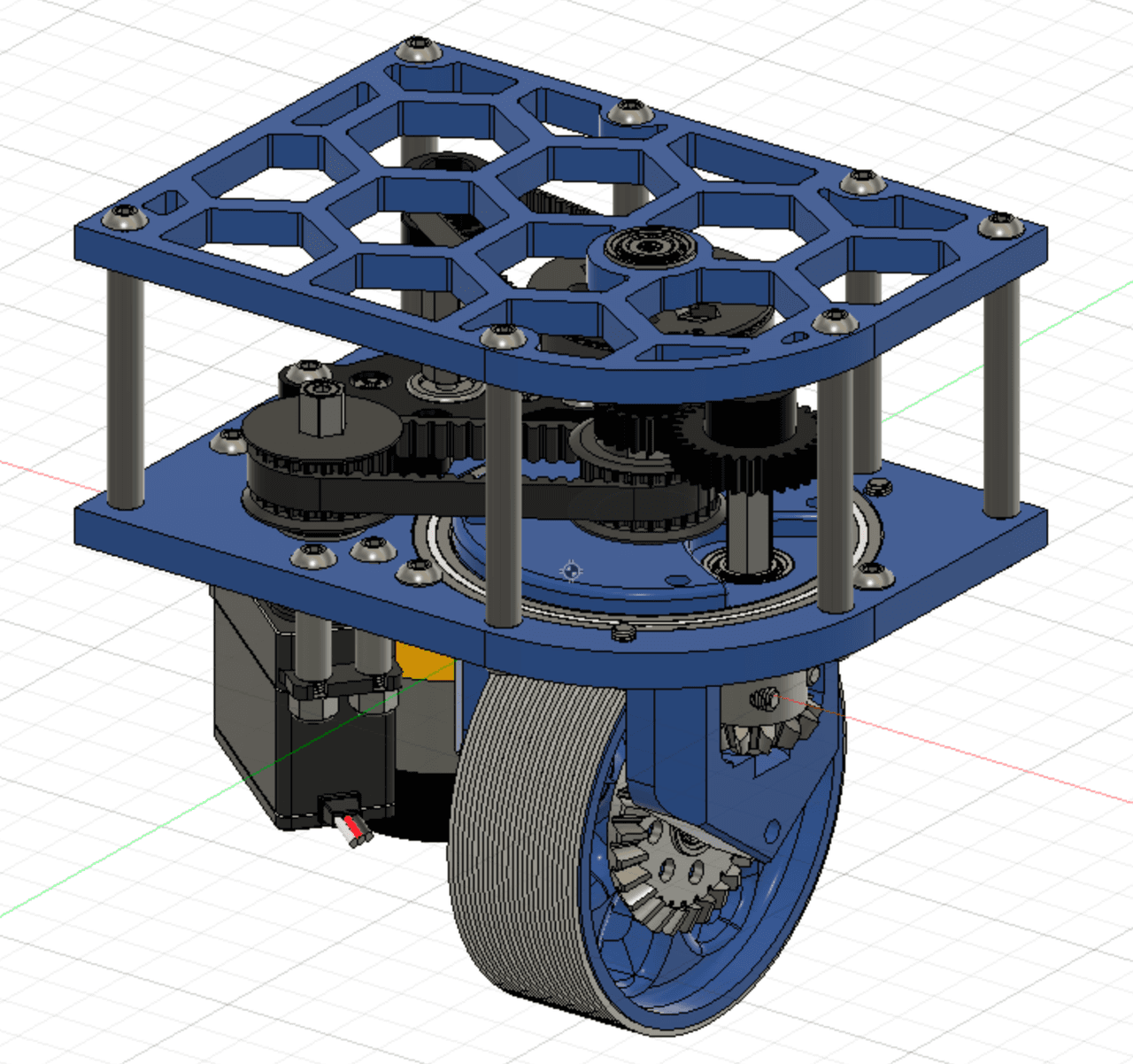

Finished my v1 Swerve Drive! (going to work on a v2 later as I noticed some improvements I can do!) Day 2 of Arcade.

https://scrapbook-into-the-redwoods.s3.amazonaws.com/0e1c7a57-d52f-4c98-9fc3-31bd151952d8-image.png

Wed, Jun 19

Started last Friday on making a robot I would have loved to build in FTC but now I am doing it for my self for some practice. Day 1 on Arcade going good! I have to make the intake and deposit and add electronics and I think that would be it for it.

https://scrapbook-into-the-redwoods.s3.amazonaws.com/d62c3ef2-9196-4ffb-bf96-e49cf687bf5b-screenshot_2024-06-18_at_9.58.13___pm.png
