Wow guys, so proud of my latest project. It's so cool! And awesome! (TEST POST, DO NOT REVIEW) (THAT MEANS YOU ELLIOT)
https://scrapbook-into-the-redwoods.s3.amazonaws.com/45938551-2dac-4c94-89b1-d5e48af51029-1s4qrffl_400x400.jpg
summer-of-making emoji
cooll-dino emoji
awesome emoji
Not done by a long shot but wanted to post an update from the last couple of weeks. I actually did a TON more work on this thing than I documented, but thats mostly because the arcade system is hard for me. Some of them have more proof than others, I didn’t get pics of everything so ig there is some trust involved, let me know if something needs more and I’ll do my best. Note I’ve refrained from posting a full picture of everything, mostly for drama purposes 👀 dm me if you need a full photo for verification purposes but I want to save the full reveal till v1 is done
https://scrapbook-into-the-redwoods.s3.amazonaws.com/1dee3b83-87a3-48e7-9cea-e17e9f35997a-img_7865.jpghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/86d77002-d613-42cd-8bfb-3087f8302dd3-img_7849.jpghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/f2495937-8a9d-47e6-8d34-e7c750bd01ef-img_7840.jpghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/3c7b4662-87ed-457f-894f-9bc7e381fa64-img_7877.jpg
Made the beds/build plates for my polar 3d printer today!
https://scrapbook-into-the-redwoods.s3.amazonaws.com/88894224-7563-4325-b538-ddb15adc458c-img_7840.jpg
spring-of-making emoji
3d-printer emoji

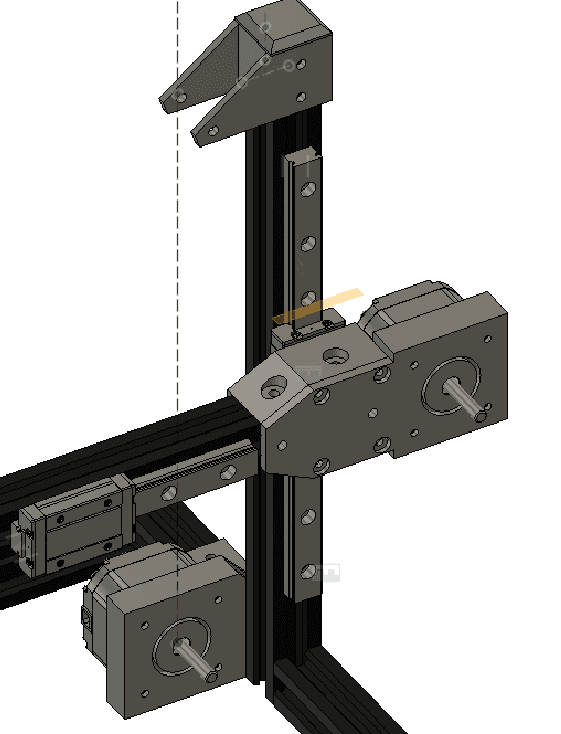

Design day 1 went well! Next up is finishing Z- and "X"- axis belt coupler/tensioner systems
https://scrapbook-into-the-redwoods.s3.amazonaws.com/eb43ad7d-75f9-4179-99c5-dc7d84642411-image.png
First post in a while. Made the jankiest PCB known to man!
https://scrapbook-into-the-redwoods.s3.amazonaws.com/31a3817f-642d-4fc1-800a-695f48c64a7a-img_7301.jpghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/b6223e92-bbe7-4fff-9a83-ec2dd00ac707-img_7300.jpg
pcb emoji
Yet another missed scrapbook day! (i am very bad at this) Spent 4 solid hours teaching fellow students to use the laser cutter/dealing with problems, then helped out with a middle school robotics program. In other news working on a new project 👀 (i cannot stop starting new projects and never finishing them please help :tw_sob:)
https://scrapbook-into-the-redwoods.s3.amazonaws.com/e91f4c7b-df41-4566-a89f-9c8c62d0514e-image.png
Terrible with scrapbooking as per usual, but I started work on yet another project
https://scrapbook-into-the-redwoods.s3.amazonaws.com/8b1082fd-badd-4e07-afb2-034315a67c13-image.png

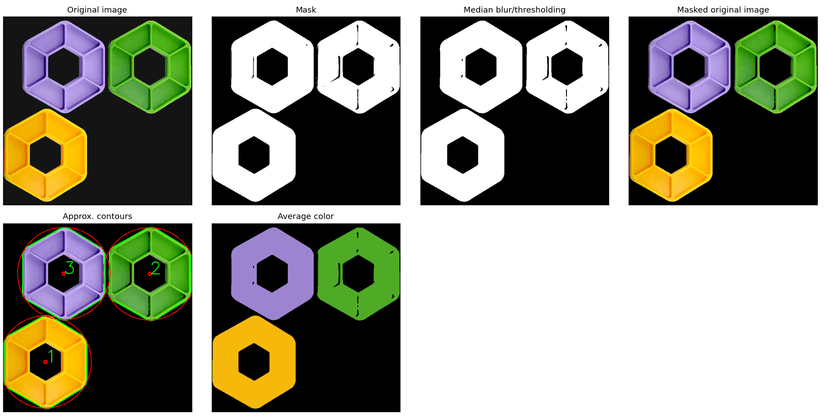

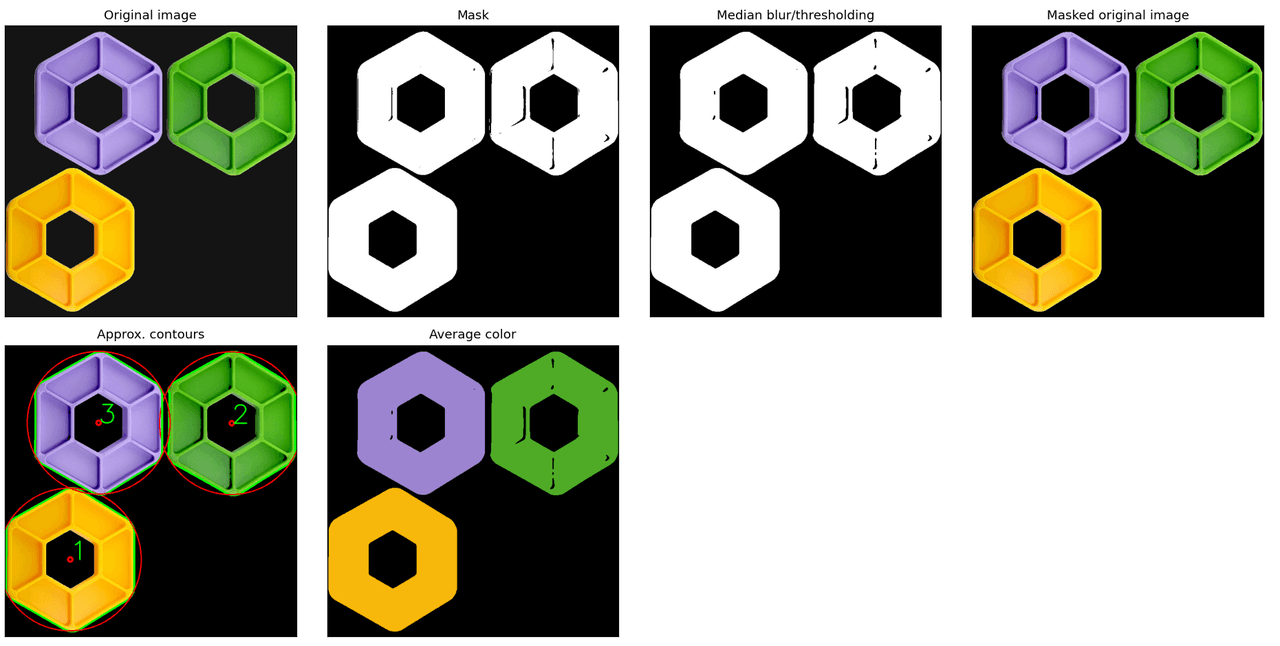

Tried out OpenCV today for later implementation with my claw design for FTC. I wanted to make a quick script to test a feature or two and ended up working on it for 12 and a half hours straight, smh. It works tho :sunglas:
https://scrapbook-into-the-redwoods.s3.amazonaws.com/713a8a0b-86a5-4967-892c-4b208ce1e501-image.pnghttps://scrapbook-into-the-redwoods.s3.amazonaws.com/3a738271-bff7-410e-9dd3-95d29e746ec7-image.png

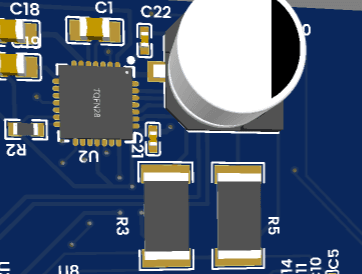

Finally started doing things again today, been out sick for about a week so it feels great to be productive. So far just a lot of schoolwork catchup and some PCB design/ emailing back and forth with some local companies. Attached is decoupling capacitor mess
https://scrapbook-into-the-redwoods.s3.amazonaws.com/c6eb9dc6-d8dc-450a-bb19-7f29a3a6ae03-image.png
upvote emoji
pcb emoji

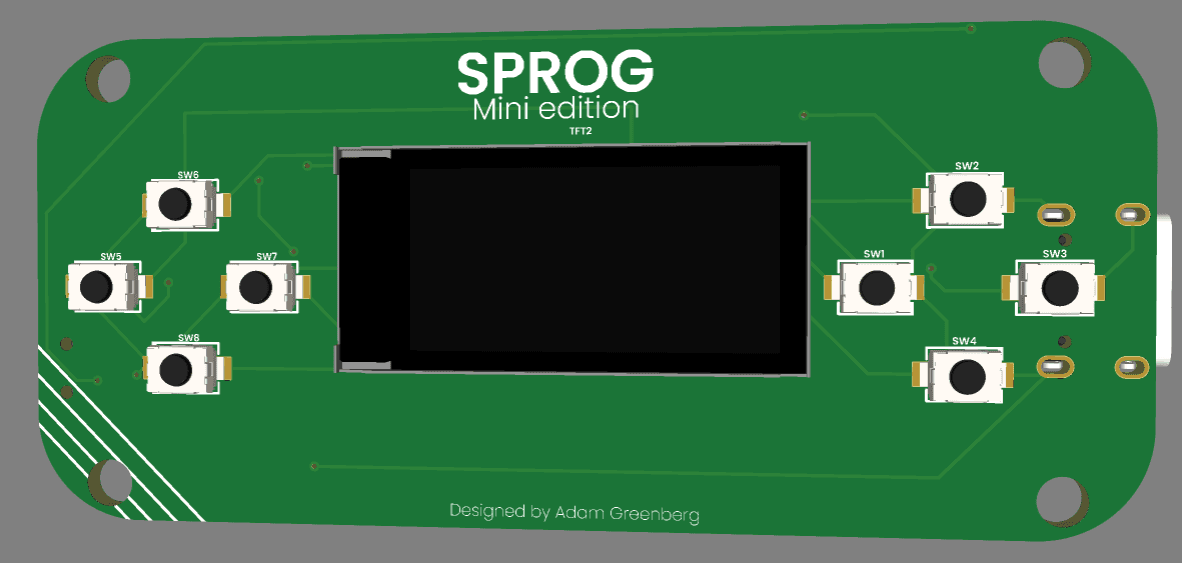

Designed a miniature #sprig knockoff with lipo charging and a tiny TFT. My first project to use a bare RP2040 chip and easily the biggest board I've ever hand routed.
https://scrapbook-into-the-redwoods.s3.amazonaws.com/15d98bc4-f2be-408a-852f-ea24ef70baa5-image.png
wom emoji
Working on a top-secret pcb project 👀
https://scrapbook-into-the-redwoods.s3.amazonaws.com/11ef65e3-add7-4498-926b-aec1c45b437d-image.png
pcb emoji
onboard emoji

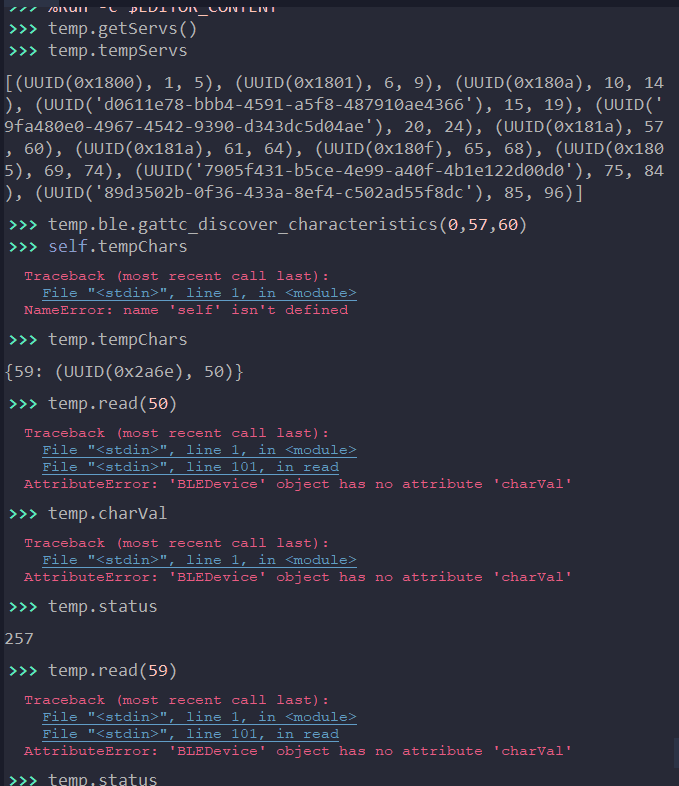

Went through much pain and suffering to learn BLE! (not going well :tw_sob:)
https://scrapbook-into-the-redwoods.s3.amazonaws.com/82692956-be6b-48ab-90d8-3da90c12a476-image.png
vta-blue emoji

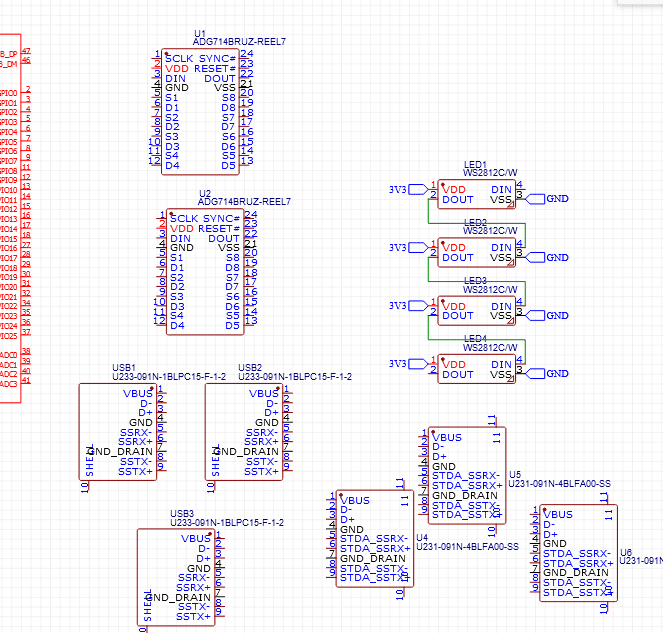

Started research work on a project with a friend for Onboard! USB 3.0 switcher (for keyboard) using multiplexer/analog switches, rp2040-based circuit for control, a display, and far too much RGB.
https://scrapbook-into-the-redwoods.s3.amazonaws.com/03f4be6a-fba3-4a9d-a024-193aa0d4846f-image.png
