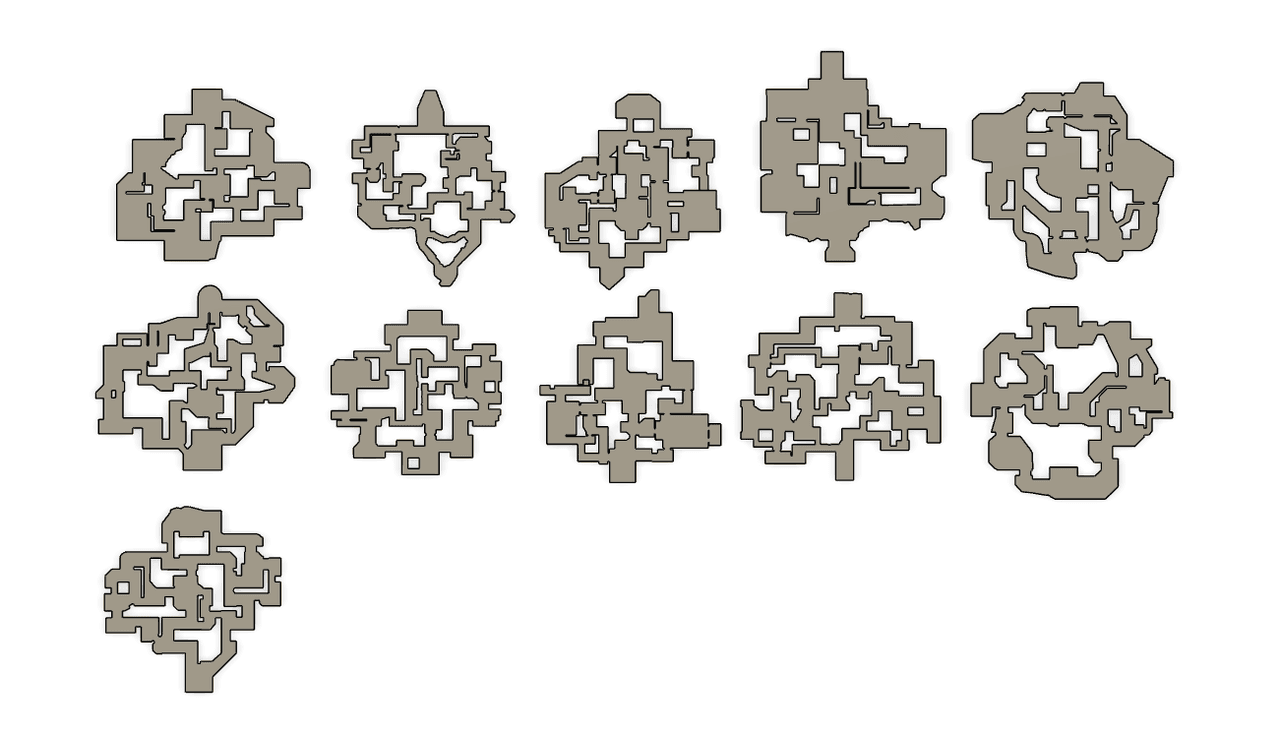

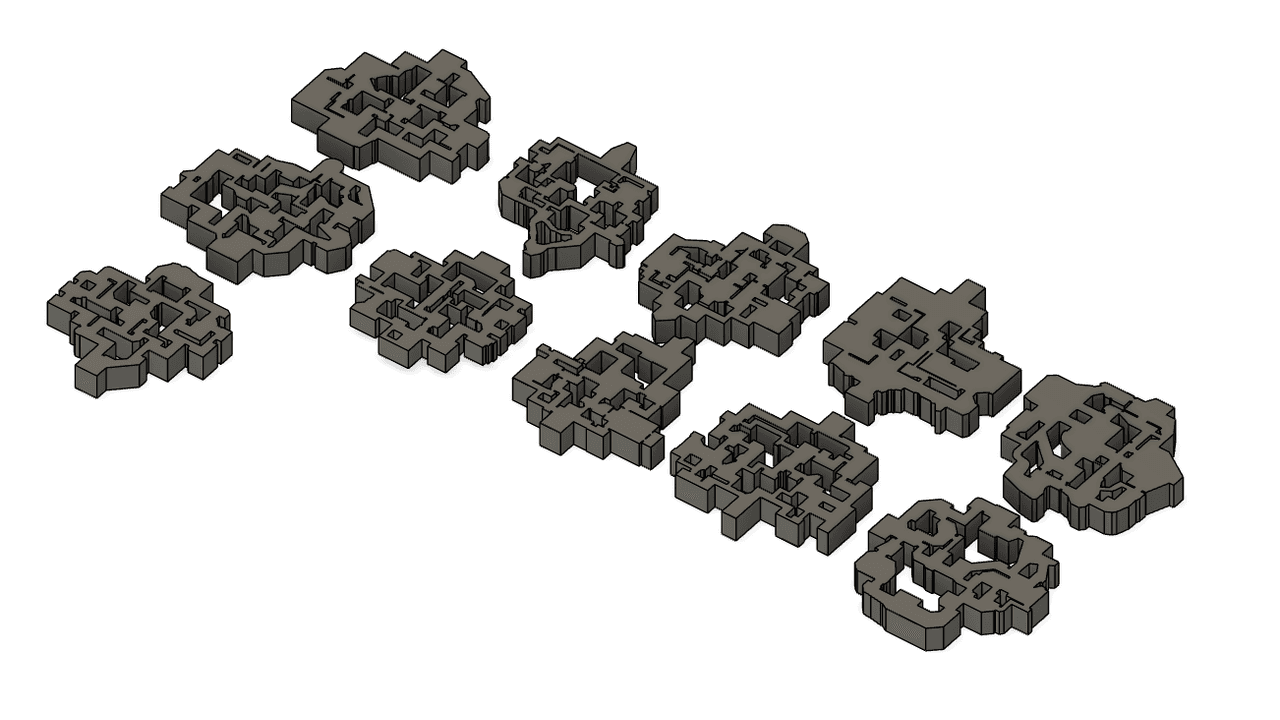

@jeslyn0Made all the current 11 Valorant Maps in Fusion 360! Going to go 3D Print them in a library later, but they're essentially made for a game I want to play with my friends. You're blindfolded and can only feel the 3D model of the maps, and have to guess what map you're feeling. (GitHub)
@IngeniousAlbert0This is my final scrapbook for my 3D printing. Here is a github link containing my custom stl files for desk organizer (I couldn't print them in time cuz I had no filament)
link: github.com/IngeniousCoders/Arcade-2024-proof/tree/main/3D%20organizer%20files. I also tried printing some gridlfinity organizers as I had based the system around the gridfinity system but I encountered a lot of printing issues like warped/deformed corner, clogged extruders etc. Overall it went well-ish. Again the github has the fixed stl files (I'm pretty sure this time) so yeah.

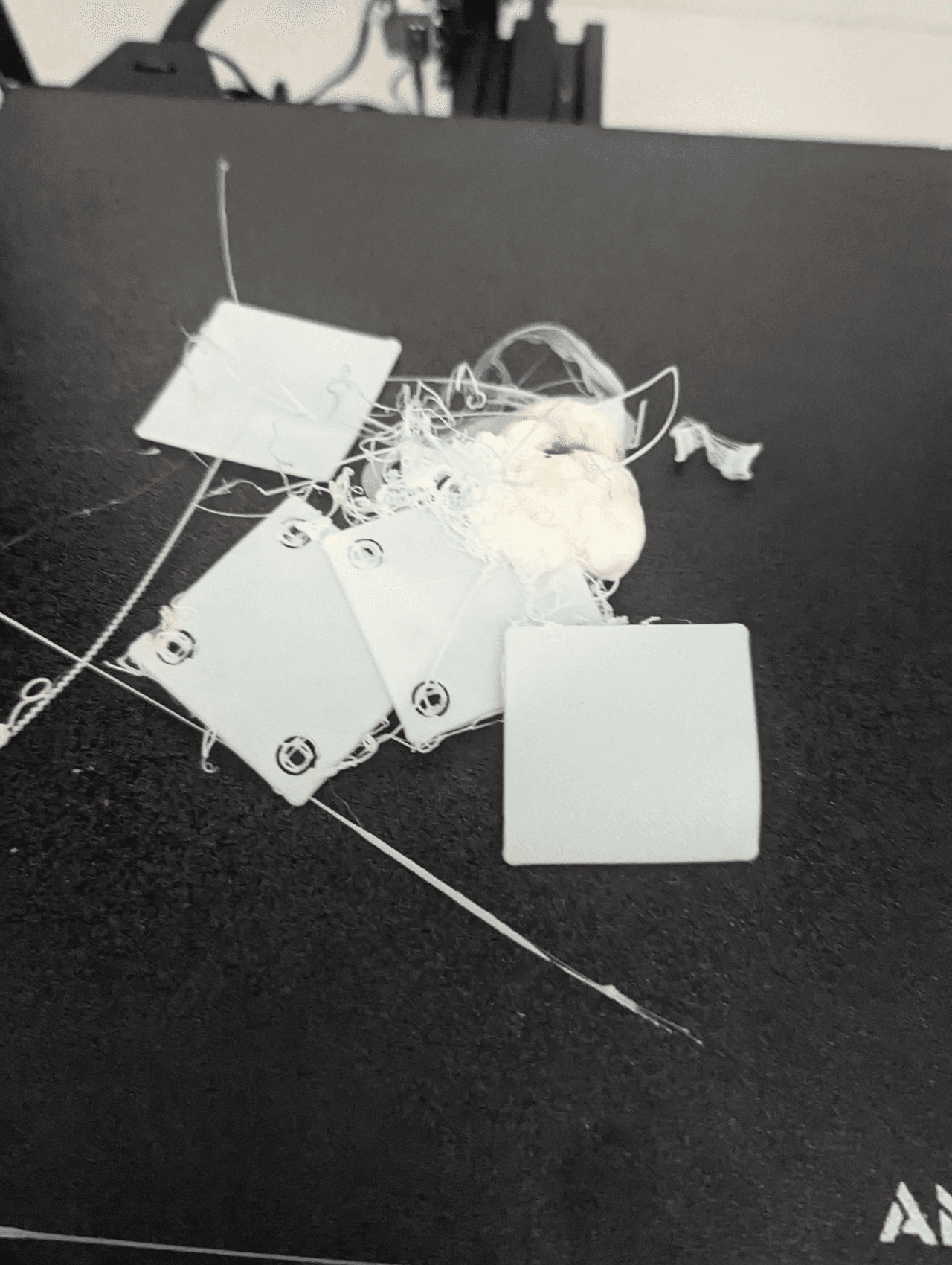

failed print imgs:
@JerryLi0My main project, "replac3d", a 3D printer build plate replacing robot, just successfully finished its first cycle!!!. More info is in the project's README. If you are interested in this project at all, feel free to DM me!
The repository contains the README, .STEP and .F3Z (Fusion360 Archive) files, as well as .INO files for code and pictures + videos in .MD files for documentation.
Repository link:
github.com/morotonai/replac3d
File commit link:
github.com/morotonai/replac3d/commit/e02be03010e036a4bdf9609d36c8cc0548ea60f1
Watch a video of it working here:
www.youtube.com/watch?v=nJoyHpohkoQ
@RishiShah0I created my own voice virtual assistant called Zephyr. It detects my voice, and is a windows service on my machine. I am still developing it to be much better on my machine with the windows service, but the actual app uses NLP to detect your voice, identify key words, and then can do tasks, like creating events on your calendar, tell you the location in a specific place, has news information depending on whatever topic you want to converse about, and has music playback as it has access to spotify. I am going to 3D print an actual system for Zephyr where it lights up inside the little hub, and i can converse with it via raspberry Pi. I have started development on that part. But as of right now, in the first block, it has access to a bunch of apis. I am also creating a website for it and am going to add keybinds to it.
Here is the github repository for it:
github.com/RishiShah99/Zephyr
It speaks using pyttsx so the stuff printed is just to show see what state it is in right now.
@JerryLi0I designed holders for build plates for "replac3d", a 3D printer build plate replacing robot, and have currently built one side. More info is in the project's README. If you are interested in this project at all, feel free to DM me! I previously had issues with one driver powering two motors.
The repository contains the README, .STEP and .F3Z (Fusion360 Archive) files, as well as .INO files for code and pictures + videos in .MD files for documentation.
Repository link:
github.com/morotonai/replac3d
File commit link:
github.com/morotonai/replac3d/commit/b95731472df5dee5cf4266cb3b85c8ae9fd930ce
@LordBBQ0(Resubmitted because of again issues x3)
I made a 3D Printer Filament extruder that takes raw ABS pellets and turns them into a roll of filament ready to print!
How it works:
1. Raw pellets are fed through a hopper into the extrusion tube.
2. The pellets are melted down through an auger bit and pushed through a custom CNC milled nozzle
3. The filament passes through two fans to cool it
4. It passes through a diameter sensor which controls the puller speed to keep consistent diameter
5. A gantry aligns the filament on the roll
6. Finally, the spooler rotates and spools the filament
Notes:
Much of this project was completed outside of HackClub, but I completed much of the final assembly in HackClub.
This component was ENTIRELY custom designed (with a few reference models like the electronics) and custom manufactured involving:
• CNC routing on my custom CNC router (PCBs and metal parts)
• Lasercutting (I used a laser cutter I have access to to lasercut all the panels)
• 3D printing (Corner parts, all other parts made on my Voron 2.4)
CAD:
Due to the huge size of the CAD model, I cannot realistically upoad it. However, I will provide a link to view the CAD online.
myhub.autodesk360.com/ue2cd6b4d/g/shares/SH30dd5QT870c25f12fc5767036ad2bc12d9 (may take a little while to load)
Features and Specs
• 3D printed and lasercut custom frame
• RAMPS 1.6 and Arduino Mega based controller
• Stepper motor drive for spooler, gantry, and puller
• Custom LCD display mount using an i2c LCD, with a custom button controller
• Custom motor protection board
• 350w meanwell powersupply
• Custom machined 3d nozzle
• Custom machined heater blocks (4x 40w for 160w max)
• Custom PID heat control with thermal runaway, max/mintemp detection
Other notes:
This design is still not entirely done. Like almost all projects, it will never be perfect, and improvement is always an option. Some of the ways this can be improved:
1. The reliability of the extrusion is not ideal and needs more testing
2. The extrusion code needs tuning and a little further development
3. I would have preferred matte black acrylic which would have looked better, but was unable to source it for a reasonable cost
4. I would have liked to have added lighting, and may do so in the future
Software:
This project uses much software that I custom developed. This can be viewed on the github page (it is not final and is a little messy)
github.com/LordBBQ/ReFil
@LordBBQ0(Resubmitted because of again issues)
I made a 3D Printer Filament extruder that takes raw ABS pellets and turns them into a roll of filament ready to print!
How it works:
1. Raw pellets are fed through a hopper into the extrusion tube.
2. The pellets are melted down through an auger bit and pushed through a custom CNC milled nozzle
3. The filament passes through two fans to cool it
4. It passes through a diameter sensor which controls the puller speed to keep consistent diameter
5. A gantry aligns the filament on the roll
6. Finally, the spooler rotates and spools the filament
Notes:
Much of this project was completed outside of HackClub, but I completed much of the final assembly in HackClub.
This component was ENTIRELY custom designed (with a few reference models like the electronics) and custom manufactured involving:
• CNC routing on my custom CNC router (PCBs and metal parts)
• Lasercutting (I used a laser cutter I have access to to lasercut all the panels)
• 3D printing (Corner parts, all other parts made on my Voron 2.4)
CAD:
Due to the huge size of the CAD model, I cannot realistically upoad it. However, I will provide a link to view the CAD online.
myhub.autodesk360.com/ue2cd6b4d/g/shares/SH30dd5QT870c25f12fc5767036ad2bc12d9 (may take a little while to load)
Features and Specs
• 3D printed and lasercut custom frame
• RAMPS 1.6 and Arduino Mega based controller
• Stepper motor drive for spooler, gantry, and puller
• Custom LCD display mount using an i2c LCD, with a custom button controller
• Custom motor protection board
• 350w meanwell powersupply
• Custom machined 3d nozzle
• Custom machined heater blocks (4x 40w for 160w max)
• Custom PID heat control with thermal runaway, max/mintemp detection
Other notes:
This design is still not entirely done. Like almost all projects, it will never be perfect, and improvement is always an option. Some of the ways this can be improved:
1. The reliability of the extrusion is not ideal and needs more testing
2. The extrusion code needs tuning and a little further development
3. I would have preferred matte black acrylic which would have looked better, but was unable to source it for a reasonable cost
4. I would have liked to have added lighting, and may do so in the future
Software:
This project uses much software that I custom developed. This can be viewed on the github page (it is not final and is a little messy)
github.com/LordBBQ/ReFil
@LordBBQ0(Resubmitted because of hakkun issues)
I made a 3D Printer Filament extruder that takes raw ABS pellets and turns them into a roll of filament ready to print!
How it works:
1. Raw pellets are fed through a hopper into the extrusion tube.
2. The pellets are melted down through an auger bit and pushed through a custom CNC milled nozzle
3. The filament passes through two fans to cool it
4. It passes through a diameter sensor which controls the puller speed to keep consistent diameter
5. A gantry aligns the filament on the roll
6. Finally, the spooler rotates and spools the filament
Notes:
Much of this project was completed outside of HackClub, but I completed much of the final assembly in HackClub.
This component was ENTIRELY custom designed (with a few reference models like the electronics) and custom manufactured involving:
• CNC routing on my custom CNC router (PCBs and metal parts)
• Lasercutting (I used a laser cutter I have access to to lasercut all the panels)
• 3D printing (Corner parts, all other parts made on my Voron 2.4)
CAD:
Due to the huge size of the CAD model, I cannot realistically upoad it. However, I will provide a link to view the CAD online.
myhub.autodesk360.com/ue2cd6b4d/g/shares/SH30dd5QT870c25f12fc5767036ad2bc12d9 (may take a little while to load)
Features and Specs
• 3D printed and lasercut custom frame
• RAMPS 1.6 and Arduino Mega based controller
• Stepper motor drive for spooler, gantry, and puller
• Custom LCD display mount using an i2c LCD, with a custom button controller
• Custom motor protection board
• 350w meanwell powersupply
• Custom machined 3d nozzle
• Custom machined heater blocks (4x 40w for 160w max)
• Custom PID heat control with thermal runaway, max/mintemp detection
Other notes:
This design is still not entirely done. Like almost all projects, it will never be perfect, and improvement is always an option. Some of the ways this can be improved:
1. The reliability of the extrusion is not ideal and needs more testing
2. The extrusion code needs tuning and a little further development
3. I would have preferred matte black acrylic which would have looked better, but was unable to source it for a reasonable cost
4. I would have liked to have added lighting, and may do so in the future
Software:
This project uses much software that I custom developed. This can be viewed on the github page (it is not final and is a little messy)
github.com/LordBBQ/ReFilNOTE 2:
These sessions were submitted before the requirement for two scraps per ticket so many only have one.
@LandonBayer0Set up Octoprint on my 3D printer using my Hack Club purchased Raspberry Pi Zero 2 W!! This was a great project, and had a little bit of everything! Summary:
• Designed and printed T-Slot extrusion attached holders for the raspberry pi and my USB camera for print monitoring (majority of the work)
• Set up some electronics to use a relay to turn the printer on and off via the raspi
• Set up octoprint itself, with various helpful plugins
• Integrated Octoeverywhere to access it from outside my home, and partnered that with the Octopod app on my phone
Overall, I'm super proud of how it turned out! You can check out my STL files and a couple pictures at the github: github.com/LandonBayer/PrinterFiles

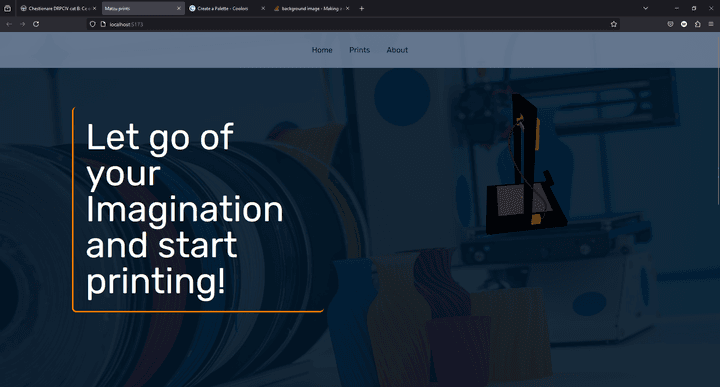

@Dragos0I have started working on a 3d print shop website using react
github.com/Saltspeddy/Matzu-printsmain--matzuprints.netlify.app

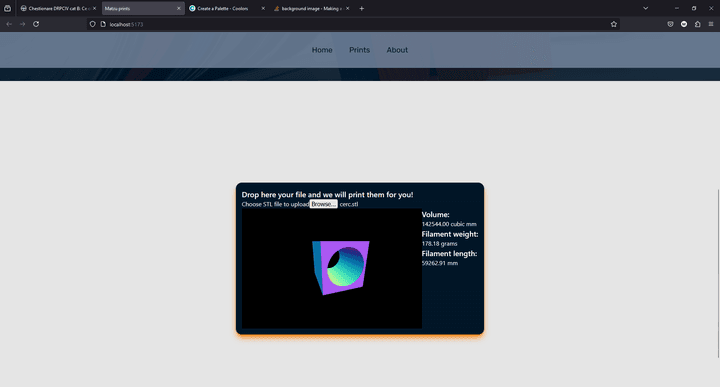

Took a while to download all the packages but started creating the bed layer for the app, also I managed to launch it on netlify so that everyone can see the progress
