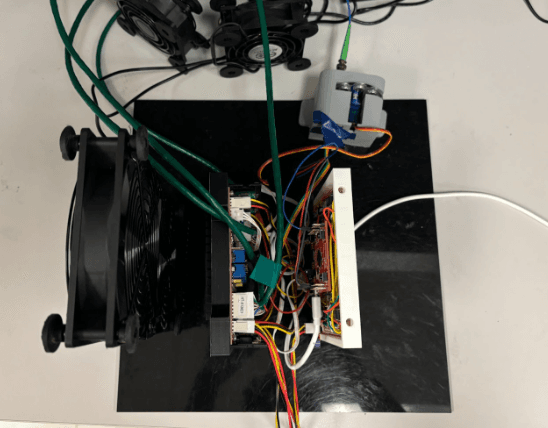

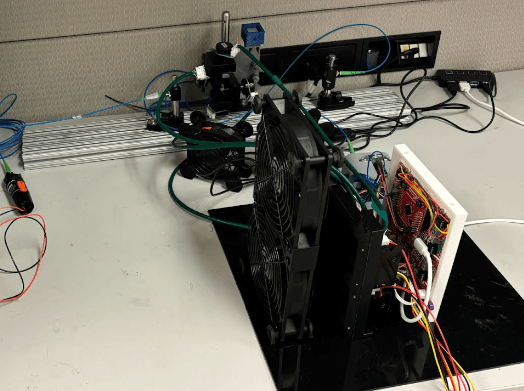

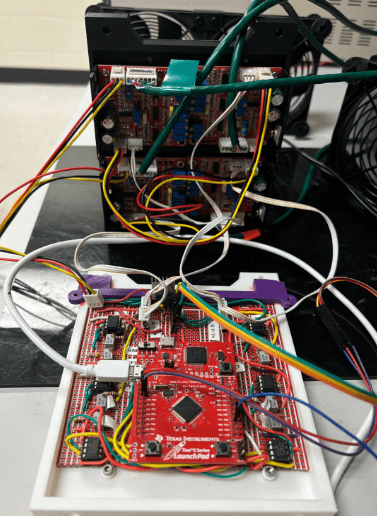

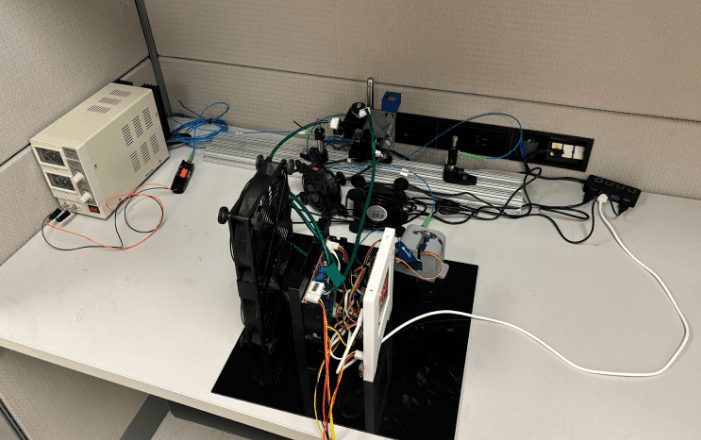

@DylanCortegana0I wired a laser turret using parts from the hack club bin!
github.com/dylancor2/Turrtv1.5-build

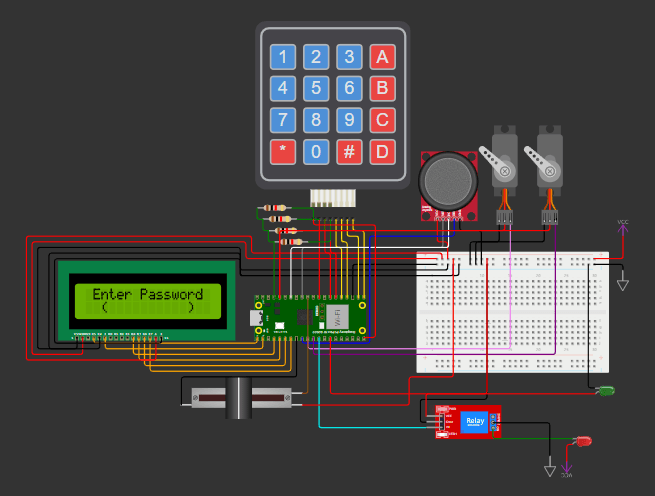

Code and Wiring based on: wokwi.com/projects/404786032169093121@LordBBQ0(Resubmitted because of again issues x3)

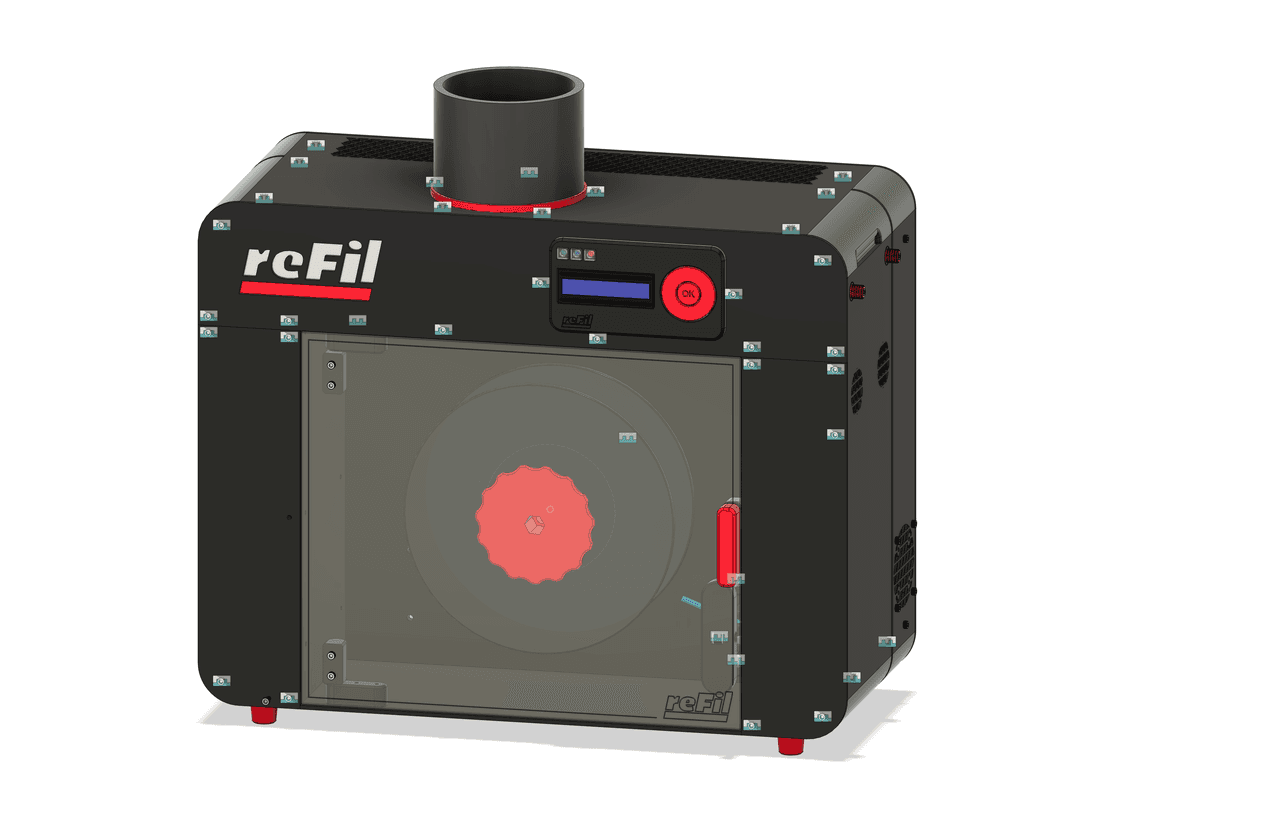

I made a 3D Printer Filament extruder that takes raw ABS pellets and turns them into a roll of filament ready to print!
How it works:
1. Raw pellets are fed through a hopper into the extrusion tube.
2. The pellets are melted down through an auger bit and pushed through a custom CNC milled nozzle
3. The filament passes through two fans to cool it
4. It passes through a diameter sensor which controls the puller speed to keep consistent diameter
5. A gantry aligns the filament on the roll
6. Finally, the spooler rotates and spools the filament
Notes:
Much of this project was completed outside of HackClub, but I completed much of the final assembly in HackClub.
This component was ENTIRELY custom designed (with a few reference models like the electronics) and custom manufactured involving:
• CNC routing on my custom CNC router (PCBs and metal parts)
• Lasercutting (I used a laser cutter I have access to to lasercut all the panels)
• 3D printing (Corner parts, all other parts made on my Voron 2.4)
CAD:
Due to the huge size of the CAD model, I cannot realistically upoad it. However, I will provide a link to view the CAD online.
myhub.autodesk360.com/ue2cd6b4d/g/shares/SH30dd5QT870c25f12fc5767036ad2bc12d9 (may take a little while to load)
Features and Specs
• 3D printed and lasercut custom frame
• RAMPS 1.6 and Arduino Mega based controller
• Stepper motor drive for spooler, gantry, and puller
• Custom LCD display mount using an i2c LCD, with a custom button controller

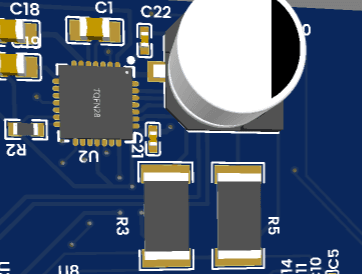

• Custom motor protection board
• 350w meanwell powersupply
• Custom machined 3d nozzle
• Custom machined heater blocks (4x 40w for 160w max)
• Custom PID heat control with thermal runaway, max/mintemp detection
Other notes:
This design is still not entirely done. Like almost all projects, it will never be perfect, and improvement is always an option. Some of the ways this can be improved:
1. The reliability of the extrusion is not ideal and needs more testing
2. The extrusion code needs tuning and a little further development
3. I would have preferred matte black acrylic which would have looked better, but was unable to source it for a reasonable cost
4. I would have liked to have added lighting, and may do so in the future
Software:
This project uses much software that I custom developed. This can be viewed on the github page (it is not final and is a little messy)
github.com/LordBBQ/ReFil
@LordBBQ0(Resubmitted because of again issues)
I made a 3D Printer Filament extruder that takes raw ABS pellets and turns them into a roll of filament ready to print!
How it works:
1. Raw pellets are fed through a hopper into the extrusion tube.
2. The pellets are melted down through an auger bit and pushed through a custom CNC milled nozzle
3. The filament passes through two fans to cool it
4. It passes through a diameter sensor which controls the puller speed to keep consistent diameter
5. A gantry aligns the filament on the roll
6. Finally, the spooler rotates and spools the filament
Notes:
Much of this project was completed outside of HackClub, but I completed much of the final assembly in HackClub.
This component was ENTIRELY custom designed (with a few reference models like the electronics) and custom manufactured involving:
• CNC routing on my custom CNC router (PCBs and metal parts)
• Lasercutting (I used a laser cutter I have access to to lasercut all the panels)
• 3D printing (Corner parts, all other parts made on my Voron 2.4)
CAD:
Due to the huge size of the CAD model, I cannot realistically upoad it. However, I will provide a link to view the CAD online.
myhub.autodesk360.com/ue2cd6b4d/g/shares/SH30dd5QT870c25f12fc5767036ad2bc12d9 (may take a little while to load)
Features and Specs
• 3D printed and lasercut custom frame
• RAMPS 1.6 and Arduino Mega based controller
• Stepper motor drive for spooler, gantry, and puller
• Custom LCD display mount using an i2c LCD, with a custom button controller
• Custom motor protection board
• 350w meanwell powersupply
• Custom machined 3d nozzle
• Custom machined heater blocks (4x 40w for 160w max)
• Custom PID heat control with thermal runaway, max/mintemp detection
Other notes:
This design is still not entirely done. Like almost all projects, it will never be perfect, and improvement is always an option. Some of the ways this can be improved:
1. The reliability of the extrusion is not ideal and needs more testing
2. The extrusion code needs tuning and a little further development
3. I would have preferred matte black acrylic which would have looked better, but was unable to source it for a reasonable cost
4. I would have liked to have added lighting, and may do so in the future
Software:
This project uses much software that I custom developed. This can be viewed on the github page (it is not final and is a little messy)
github.com/LordBBQ/ReFil
@LordBBQ0(Resubmitted because of hakkun issues)
I made a 3D Printer Filament extruder that takes raw ABS pellets and turns them into a roll of filament ready to print!
How it works:
1. Raw pellets are fed through a hopper into the extrusion tube.
2. The pellets are melted down through an auger bit and pushed through a custom CNC milled nozzle
3. The filament passes through two fans to cool it
4. It passes through a diameter sensor which controls the puller speed to keep consistent diameter
5. A gantry aligns the filament on the roll
6. Finally, the spooler rotates and spools the filament
Notes:
Much of this project was completed outside of HackClub, but I completed much of the final assembly in HackClub.
This component was ENTIRELY custom designed (with a few reference models like the electronics) and custom manufactured involving:
• CNC routing on my custom CNC router (PCBs and metal parts)
• Lasercutting (I used a laser cutter I have access to to lasercut all the panels)
• 3D printing (Corner parts, all other parts made on my Voron 2.4)
CAD:
Due to the huge size of the CAD model, I cannot realistically upoad it. However, I will provide a link to view the CAD online.
myhub.autodesk360.com/ue2cd6b4d/g/shares/SH30dd5QT870c25f12fc5767036ad2bc12d9 (may take a little while to load)
Features and Specs
• 3D printed and lasercut custom frame
• RAMPS 1.6 and Arduino Mega based controller
• Stepper motor drive for spooler, gantry, and puller
• Custom LCD display mount using an i2c LCD, with a custom button controller
• Custom motor protection board
• 350w meanwell powersupply
• Custom machined 3d nozzle
• Custom machined heater blocks (4x 40w for 160w max)
• Custom PID heat control with thermal runaway, max/mintemp detection
Other notes:
This design is still not entirely done. Like almost all projects, it will never be perfect, and improvement is always an option. Some of the ways this can be improved:
1. The reliability of the extrusion is not ideal and needs more testing
2. The extrusion code needs tuning and a little further development
3. I would have preferred matte black acrylic which would have looked better, but was unable to source it for a reasonable cost
4. I would have liked to have added lighting, and may do so in the future
Software:
This project uses much software that I custom developed. This can be viewed on the github page (it is not final and is a little messy)
github.com/LordBBQ/ReFilNOTE 2:
These sessions were submitted before the requirement for two scraps per ticket so many only have one.

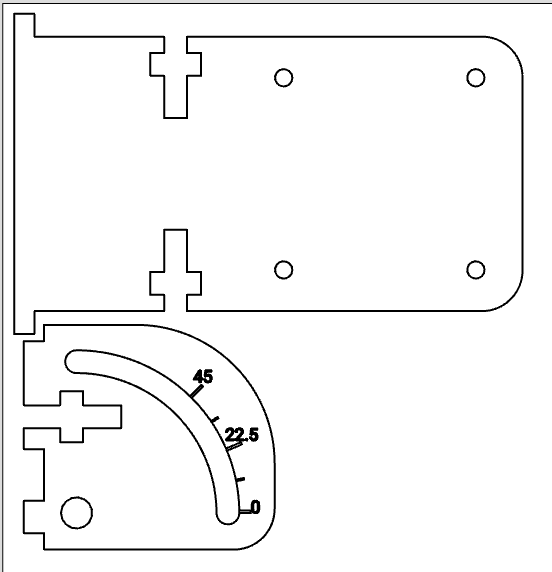

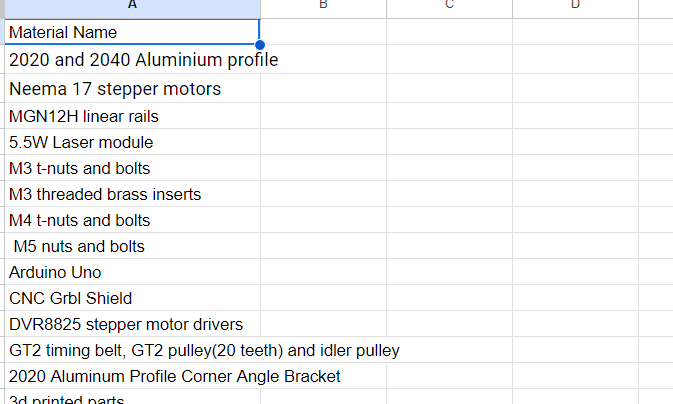

@IshaanGupta0Laser cut with @SaketT
Lots of parts were off the first time. Cleaned lens and focused lens better this time, cuts are hopefully more accurate
🚢@StephanieWan0I laser cut medals from wood, attached them to ribbons, and shipped them off across the country with friends for a contest we ran a few months ago 🙂 (also 3d printed trophies!)
files: github.com/swan-07/lexso-2024-models/tree/mai
