Wed, Nov 29, 2023

finished up schematic! Still need to do a double check. Main things worked on: • Calculating gain for amplifier • Adding voltage regulator • Adding resistances for LEDs

https://scrapbook-into-the-redwoods.s3.amazonaws.com/b9545497-abe6-4726-928e-da7289677611-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/842b6b19-7e42-452b-a1df-a77d2dce91a1-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/8e34a8f7-d3a7-4882-849f-4145eb951cf9-image.png

Fri, Nov 24, 2023

Making Candy Cane PCBs for #onboard! Already on my Christmas/holiday spotify grind.

https://scrapbook-into-the-redwoods.s3.amazonaws.com/cbb6aa34-877b-467b-8d3b-f6a3c78a3514-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/6ad1c9cd-0e94-4015-b8c5-796c28631218-image.png

Thu, Oct 5, 2023

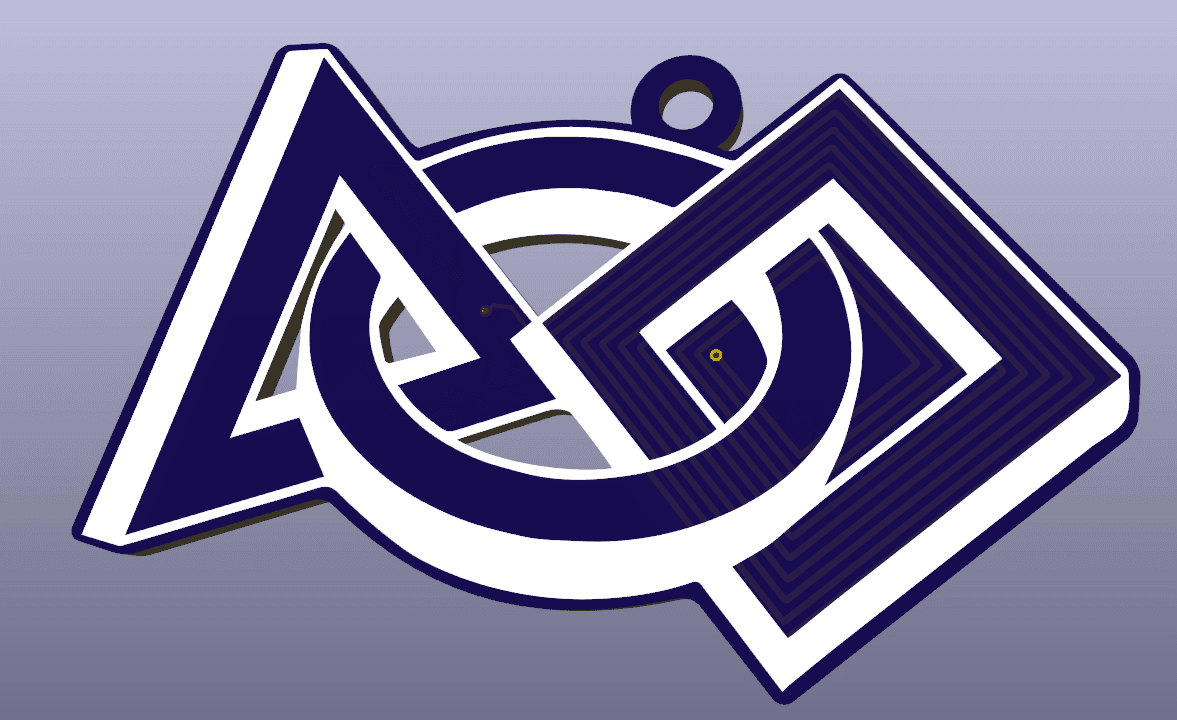

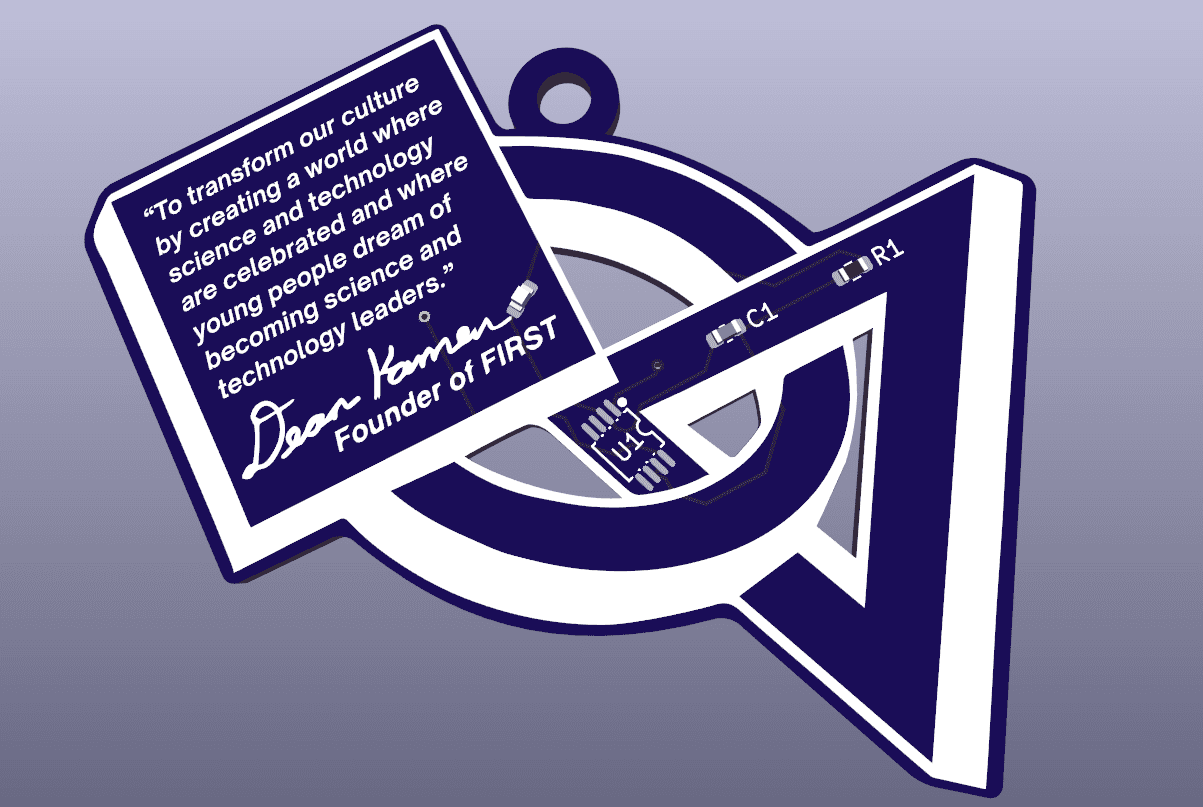

Boards have been ordered!

https://scrapbook-into-the-redwoods.s3.amazonaws.com/f055a612-86af-4248-8ac4-4c743efd131d-screenshot_2023-10-04_223157.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/dba3542a-f559-45bc-9749-42f154a5aa51-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/9f2274bc-72e7-48ac-8918-454b313b6c51-image.png

Tue, Oct 3, 2023

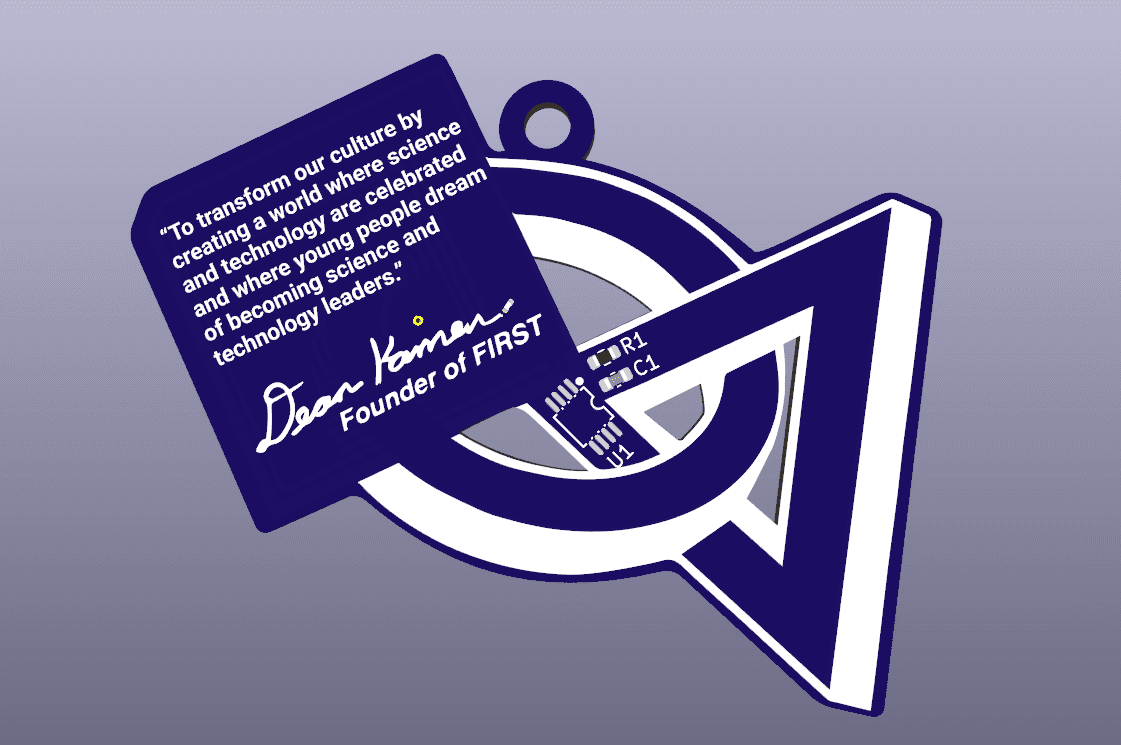

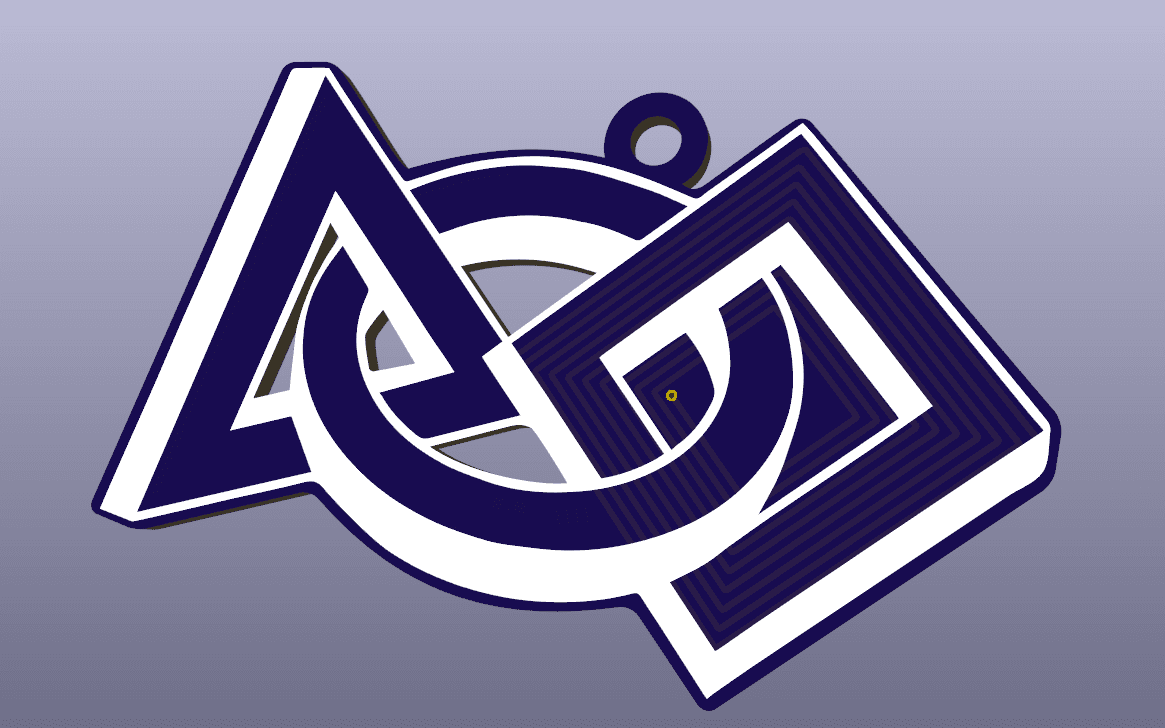

Almost there!!! Dean's sig now lights up!

https://scrapbook-into-the-redwoods.s3.amazonaws.com/13e07107-1536-46b2-97ce-c6c6779d4f19-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/47053a91-db51-4b34-8aff-cf96bedb3aff-image.png

Tue, Oct 3, 2023

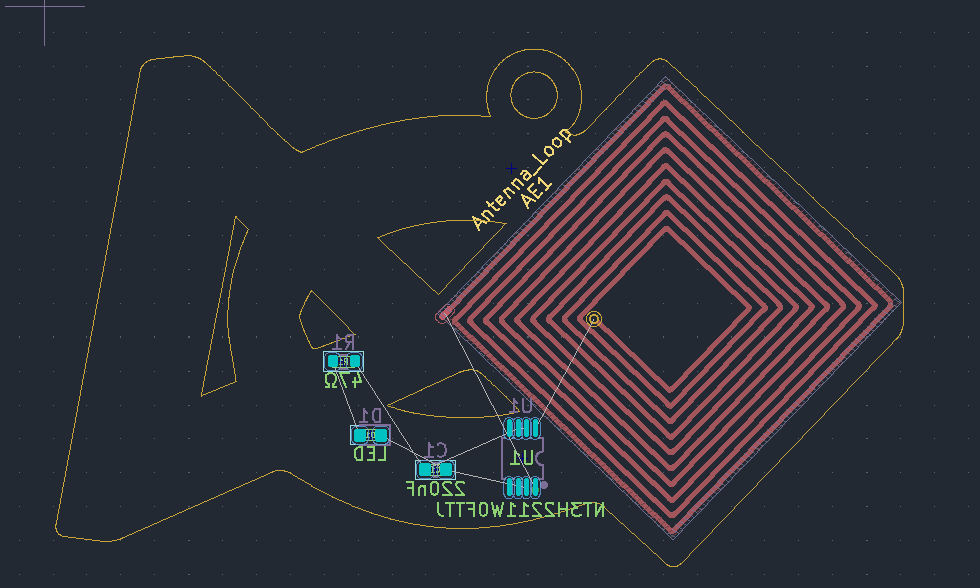

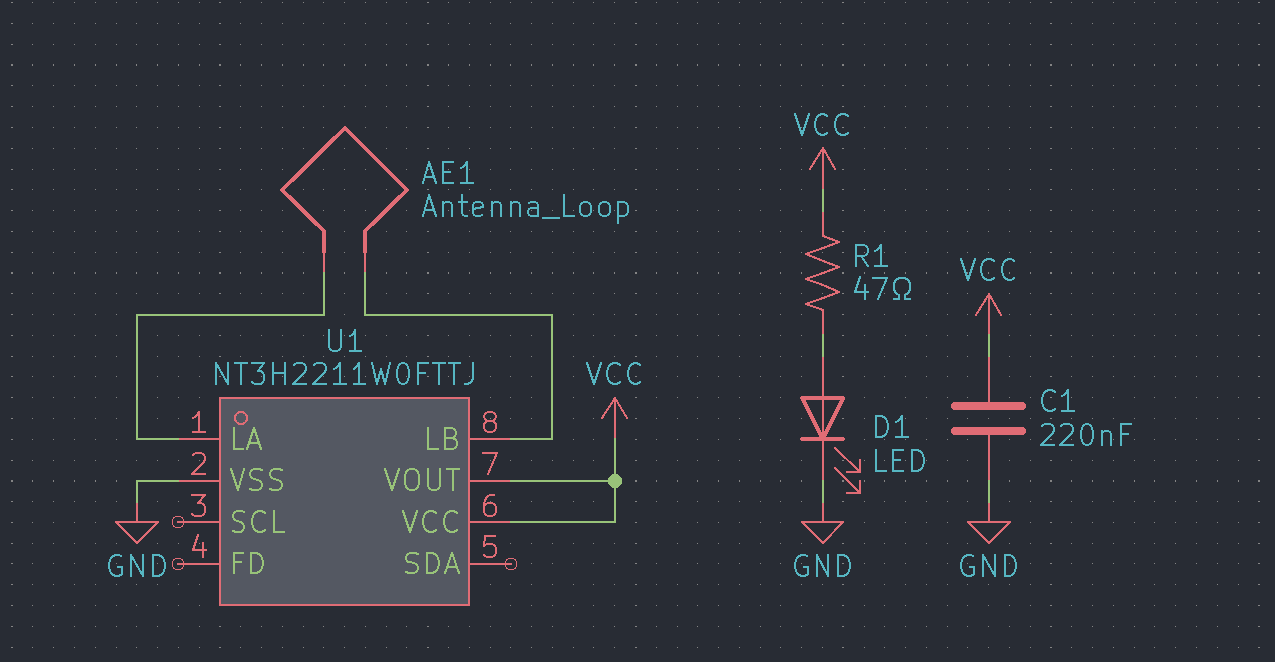

haha, i forgot how simple a PCB biz card is! The schematic is just 5 parts!

https://scrapbook-into-the-redwoods.s3.amazonaws.com/7bf9a1e1-8870-4f0b-ad01-ef44e2d95716-image.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/826ff915-6819-43a2-9dbb-58b721378d38-image.png

Mon, Oct 2, 2023

This took a lot longer than I thought it would take: designed a custom antenna for the #frc x #onboard trinket. It's specifically tuned for biz card. Some additional resources for y'all curious in designing your own: • NFC Antenna Design Webinar • Key equation: Ideal Inductance = 1/( (2pi freq)^2 chip_capacitance)) • Impedance Calculator • Antenna footprint generator

https://scrapbook-into-the-redwoods.s3.amazonaws.com/4744cb87-c92f-42d9-8336-259f083342bf-untitled__2_.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/37334e0b-d1fe-40c0-a82d-4f5056ce09f7-untitled.png

https://scrapbook-into-the-redwoods.s3.amazonaws.com/0b83a8d4-93ce-4b75-90df-5a80f525aaab-untitled__1_.png

Sun, Feb 19, 2023

Finished LED driver circuit!

Sat, Feb 18, 2023

Did some soldering today for an LED driver. Also put up a design to be CNC cut.

https://cloud-gm3r5n2or-hack-club-bot.vercel.app/0img_5351.jpg

Fri, Feb 17, 2023

Quickly whipped up some rough extrudes for wooden frame. Downloaded and built a few libraries.

https://cloud-49ccedl3u-hack-club-bot.vercel.app/0image.png

https://cloud-9toa09afl-hack-club-bot.vercel.app/0image.png

Thu, Feb 16, 2023

Ahhhh! Robotics had me crazy today so I couldn’t sit down and CAD a case. Regardless, I made this cool pivoting gearbox that has a 400:1 gear ratio. And it was a clear sky day too!
